PARAMÈTRES DU PRODUIT

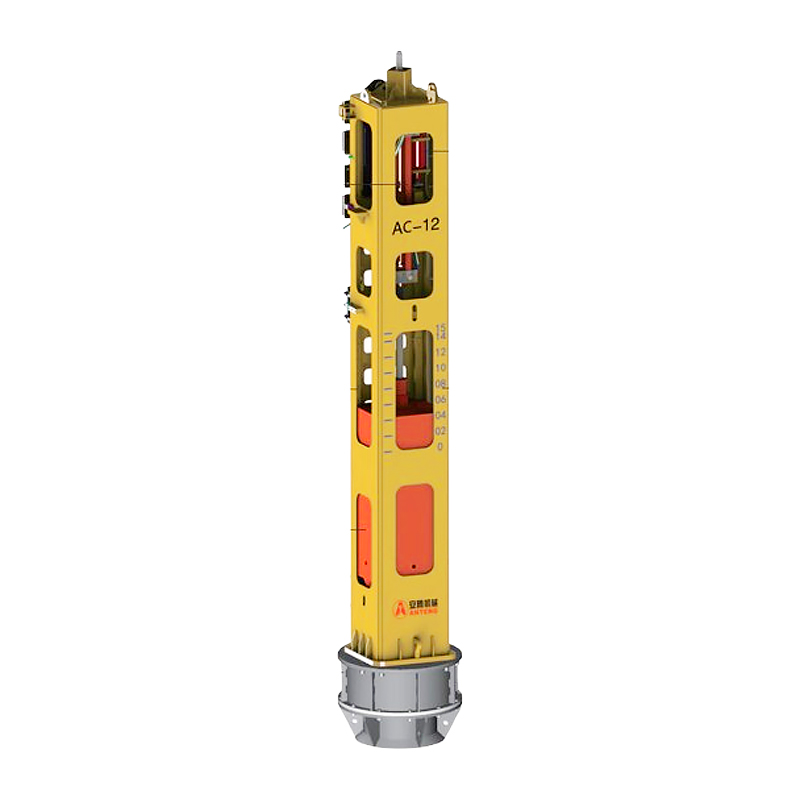

Model: Hydraulic Impact Hammer
Operating Weight: 5800–53000 kg
Application: Onshore and Offshore Pile Driving
Type: Fixed Leader, Crane Suspended, Offshore Leader, U-Type Leads
Depth Capability: Over 5 m Underwater
Function: Batter Piles and Sheet Piling
OEM: Available for Customization

DEMANDER UN DEVIS

Description

FAQ

Demande de devis

DESCRIPTION

DESCRIPTION DES PRODUITS

The hydraulic impact hammer is designed for various piling operations, including Fixed Leader Type (round or square), Crane Suspended Type, Offshore Leader Type, and U-Type Leads. It is suitable for onshore and offshore pile driving conditions, as well as batter piles, underwater works over 5 meters, and sheet piling applications. With stable performance and precise control, it ensures reliable energy transfer and efficient operation in demanding environments.

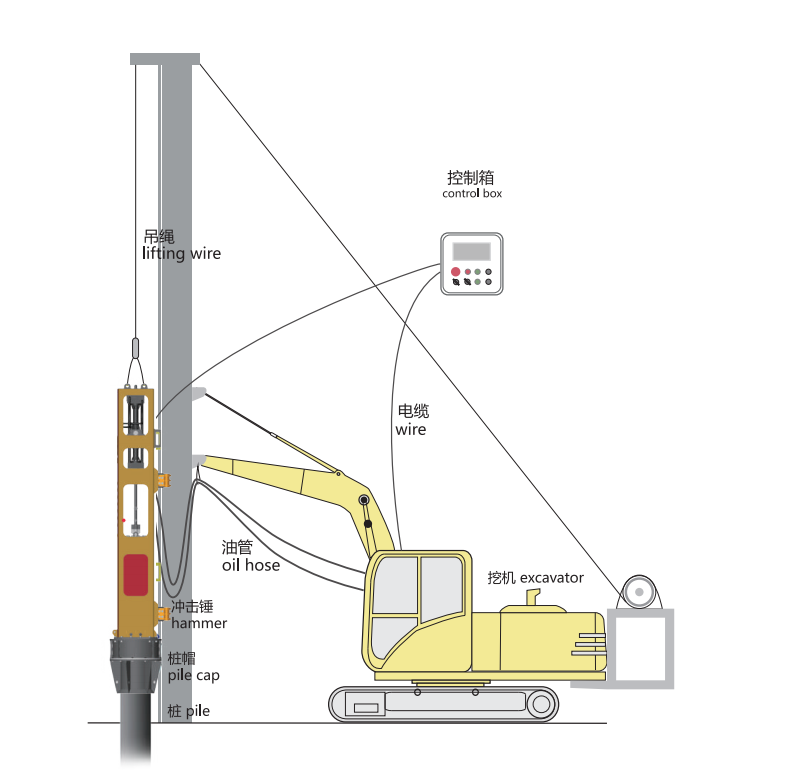

STRUCTURE DES PRODUITS

PARAMÈTRES TECHNIQUES

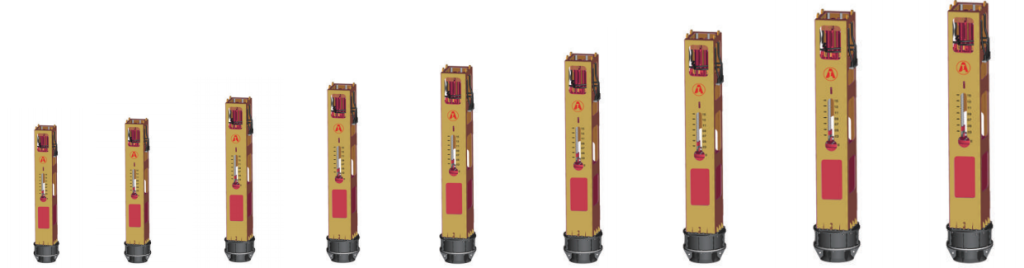

Modèle	Paramètres	AC-3	AC-5	AC-8	AC-11	AC-12	AC-14
Hydraulic Impact Hammer	Impact energy (KNm)	36	60	120	165	180	210
	Working stroke (mm)	1200	1200	1500	1500	1500	1500
	Impact frequency (bpm)	50/100	40/100	30/100	30/100	30/100	30/100
	Ram Weight (kg)	3000	5000	8000	11000	12000	14000
	Lifting method	multicolumn
Size W/O Pile cap	Length (mm)	4020	5150	6140	6790		7155
	Width (mm)	900	900	976	1100	1100	1100
	Height (mm)	1060	1060	1190	1290		1290
	Weight (kg)	5800	8500	12000	16000	18000	21000
Pile cap	L×W×H (mm)	895×895×745	895×895×745	920×920×900	976×976×1010	976×976×1010	1260×1200×1050
	Weight (kg)	1100	1100	1250	1380	1380	2100

Modèle	Paramètres	AC-15	AC-16	AC-18	AC-20	AC-25	AC-30	AC-35	AC-40
Hydraulic Impact Hammer	Impact energy (KNm)	225	240	270	300	375	450	525	680
	Working stroke (mm)	1500	1500	1500	1500	1500	1500	1500	1700
	Impact frequency (bpm)	30/90	30/90	30/90	30/90	28/85	25/70	25/70	20/65
	Ram Weight (kg)	15000	16000	18000	20000	25000	30000	35000	40000
	Lifting method	Single hydraulic cylinder lifting	Single hydraulic cylinder lifting
Size W/O Pile cap	Length (mm)	7250	7400	7160	7530	7990	7950	8150	8804
	Width (mm)	1100	1100	1100	1340	1340	1460	1674	1262
	Height (mm)	1290	1290	1290	1450	1450	1900	1860	1884
	Weight (kg)	22000	23000	25000	30000	36000	41000	47000	53000
Pile cap	L×W×H (mm)	1260×1200×1050	1260×1200×1050	1260×1260×1050		CUSTOM DESIGN	CUSTOM DESIGN	CUSTOM DESIGN	CUSTOM DESIGN
	Weight (kg)	2100	2100	2100		CUSTOM DESIGN	CUSTOM DESIGN	CUSTOM DESIGN	CUSTOM DESIGN
