Side Grip Piling Hammer B Series with Rototilt and Hydraulic Clamp - Excavators, Loaders & Wide-Body Dump Trucks | Global Machinery Solutions

PARAMÈTRES DU PRODUIT

Model: Side Grip Piling Hammer
Operating Weight: 3500–4100 kg
OEM: Available for Customization

DEMANDER UN DEVIS

Description

FAQ

Demande de devis

DESCRIPTION

DESCRIPTION DES PRODUITS

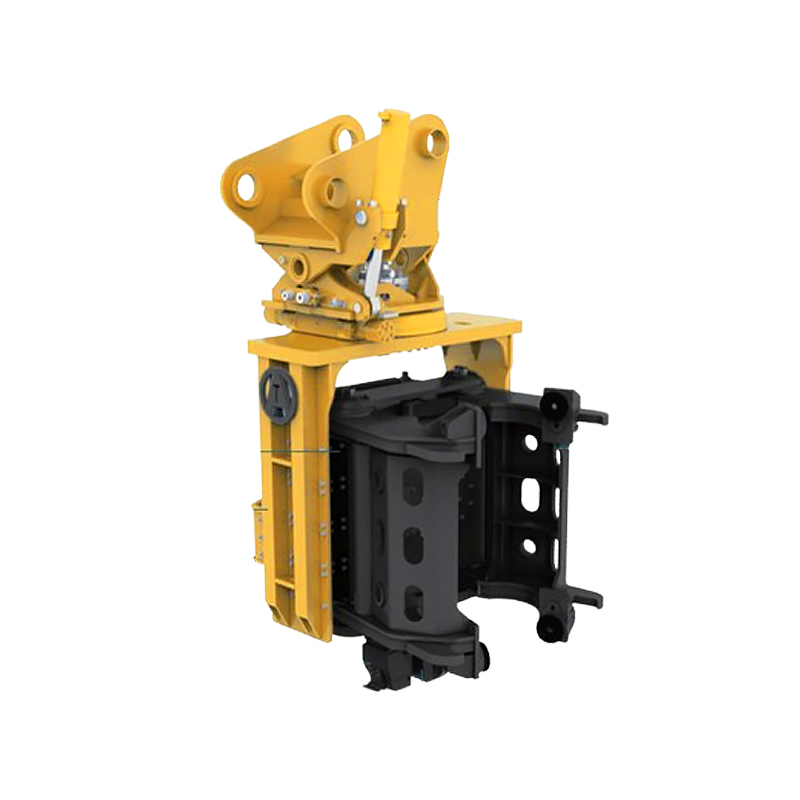

The side grip piling hammer features a Rototilt rotary joint for flexible operation and precise tilt control, allowing accurate and independent pile positioning. Imported, customized elastomer shock absorbers reduce vibration and extend service life. The side grip jaws are easily interchangeable to handle various piling conditions.

A high-precision gearbox ensures long-term, stable performance even under demanding workloads. The hydraulic bottom clamp is crafted from high-strength alloy steel, CNC-formed in a single process, and treated with vacuum heat and high-temperature quenching. This creates a compact, solid, and wear-resistant structure, enabling efficient pile picking, setting, and secure handling.

PARAMÈTRES TECHNIQUES

Data/Model	AT45B	AT55B	AT65B	AT75B
Eccentric Moment (Kgm)	4.5	5.5	6.5	7.5
Centrifugal Force (KN)	285	348	412	475
Max Centrifugal Force (KN)	445	545	644	743
Frequency (Rpm)	2400~3000	2400~3000	2400~3000	2400~3000
Side Clamp Force (KN)	468	764	912	1116
Bottom Clamp Force (KN)	540	540	650	650
Hydraulic System Operation Pressure (Bar)	350	350	350	350
Rotate/Tilt Degree (°)	360/±30	360/±30	360/±30	360/±30
Size (mm)	1241×1222×2239	1320×1450×2590	1350×1490×2700	1350×1490×2700
Weight (Kg)	2322	3300	3500	3800
Excavator Weight (T)	15~25	25~32	32~40	40~50
Custom Designed Side Grip Applicable Steel Pipe Dia Scope (mm)		180~630mm
Bottom Damp Steel Pipe Dia Scope (mm)		<325mm
