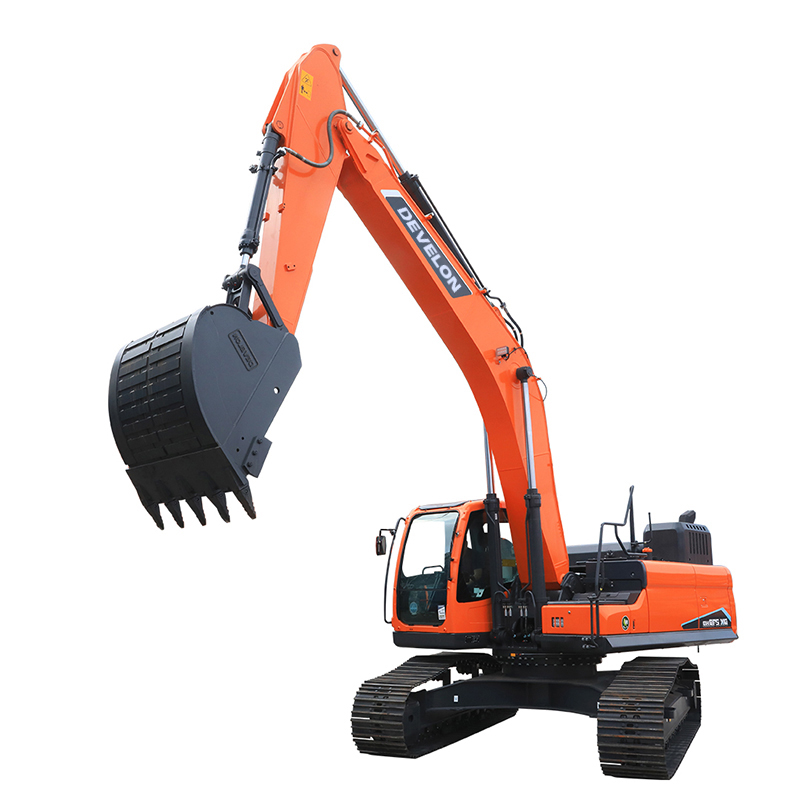

DEVELON DX270HD Hydraulic Excavator

PARAMETRI DEL PRODOTTO

  • Model: DX270HD
  • Operating Weight: 26,200 kg
  • Engine: DEVELON DL06 Six-Cylinder (National IV, DPF+SCR)
  • Rated Power: 141.4 kW / 2,000 rpm
  • Bucket Capacity: 1.5 m³
  • Max. Digging Depth: 6,838 mm
  • Max. Digging Height: 9,673 mm
  • Hydraulic Flow: 2 × 237 L/min
  • Track Width: 600 mm
  • Track Length: 4,630 mm
Descrizione
FAQ
Richiesta di preventivo

DESCRIZIONE

DESCRIZIONE DEI PRODOTTI

The DEVELON DX270HD is a heavy-duty hydraulic excavator designed for superior power, efficiency, and durability. Equipped with the DEVELON DL06 six-cylinder engine and a 1.5 m³ ultra-large bucket, it delivers exceptional digging force and high productivity in demanding environments. With features like SPC3 intelligent control, reinforced extended chassis, and a 360° panoramic cab, the DX270HD is ideal for mining, large-scale earthmoving, and crushing operations.

PRODUCTS STRUCTURE

PARAMETRO TECNICO

ArticoloSpecifiche
Engine ModelDivanlen DL06
Engine TypeElectronic Control, Turbocharged
Number of Cylinders6
Cylinder Bore100 mm
Piston Stroke125 mm
Potenza nominale141.4 kW / 2,000 rpm
Hydraulic System Max Flow2 × 237 L/min
Travel Hydraulic Circuit Pressure350 kg/cm²
Working Hydraulic Circuit Pressure350/370 kg/cm²
Swing Hydraulic Circuit Pressure285 kg/cm²
Boom Cylinder130 × 90 × 1,365 mm
Arm Cylinder145 × 105 × 1,655 mm
Bucket Cylinder125 × 82 × 1,640 mm
Swing Speed11.1 rpm
