Escavatore idraulico DEVELON DX205

PARAMETRI DEL PRODOTTO

  • Model: DX205
  • Operating Weight: 19,850 kg
  • Engine Perkins: 1204EA (National IV)
  • Rated Power: 110 kW / 2,200 rpm
  • Bucket Capacity: 0.92 m³
  • Max. Digging Depth: 6,518 mm
  • Max. Digging Height: 9,601 mm
  • Hydraulic Flow: 2 × 192.4 L/min
  • Track Width: 600 mm
Descrizione
FAQ
Richiesta di preventivo

DESCRIZIONE

DESCRIZIONE DEI PRODOTTI

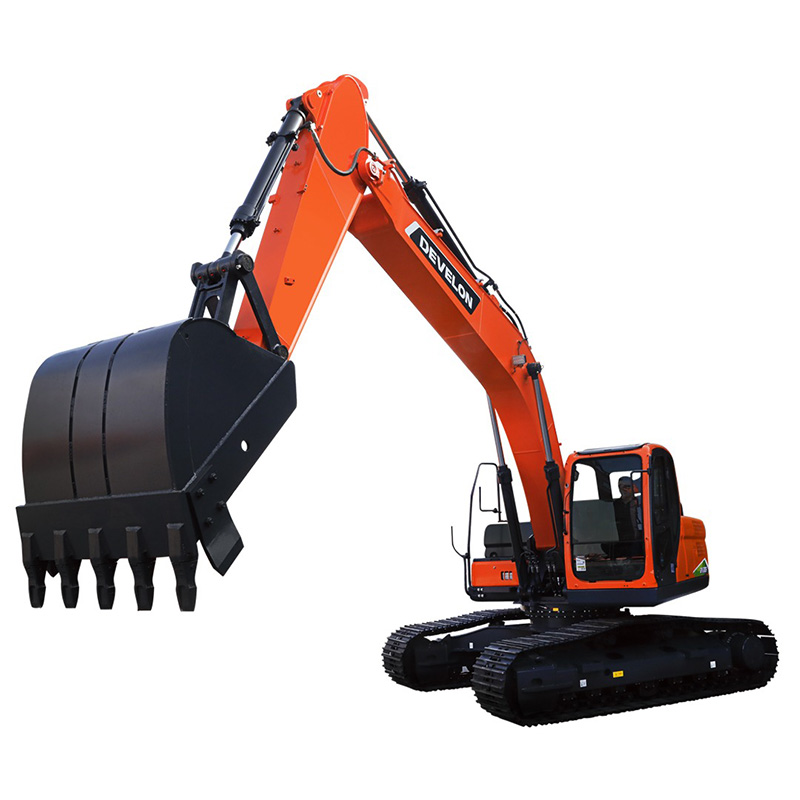

The DEVELON DX205 hydraulic excavator is a 20-ton Class IV machine designed for reliable power, stable digging performance, and easy maintenance. Powered by a Perkins 1204EA National IV engine (110 kW/2,200 rpm), it delivers strong efficiency even at 5,000 meters high-altitude worksites. With SPC3 SMART control and an EVBO electronic system, it reduces fuel consumption and lowers operation costs, making it ideal for earthworks, construction, mining, and material handling.

PRODUCTS STRUCTURE

PARAMETRO TECNICO

ArticoloSpecifiche
Engine ModelPerkins 1204EA
AspirationTurbocharged
No. of CylindersA
Bore105 mm
Stroke127 mm
Potenza nominale110 kW/2,200 rpm
Hydraulic System TypeVBO Electronic Control
Max. Flow2×192.4 L/min
Swing Drive MethodHydraulic Drive
Reduction MechanismPlanetary Gear Reduction
Swing BrakeWet Multi-Disc Brake
Swing Speed11.2 rpm
Operating Weight19,850kg
Bucket0.92m³
Boom5,600mm HD
Arm2,900mm HD
Maximum Digging Force (ISO) – Bucket13.2ton
Maximum Digging Force (ISO) – Bucket (Power Boost)13.9ton
Maximum Digging Force (ISO) – Arm10.1ton
Maximum Digging Force (ISO) – Arm (Power Boost)10.7ton
