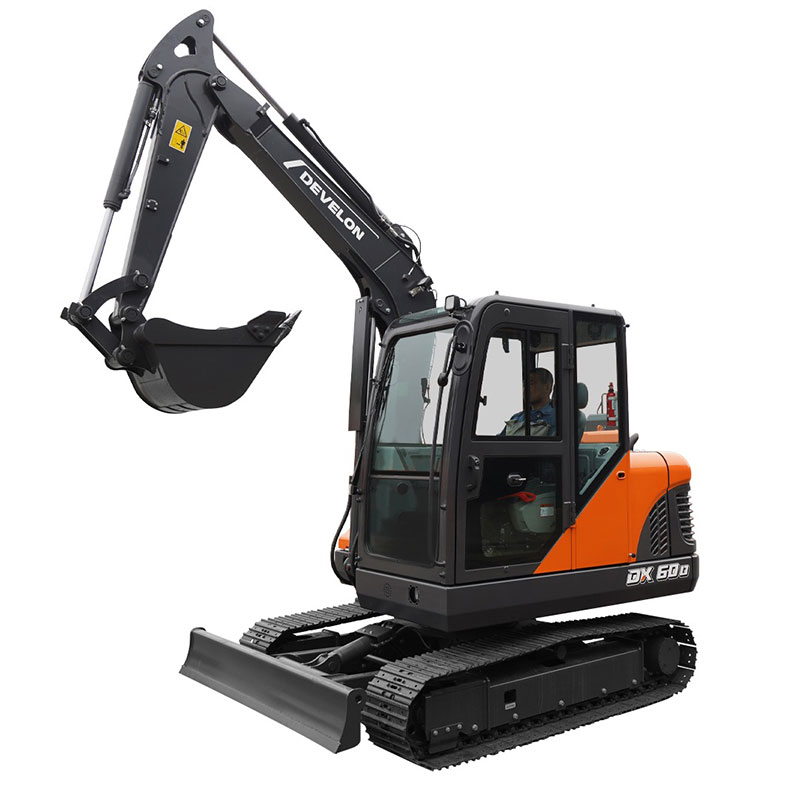

Mini escavatore idraulico DEVELON DX60D
PARAMETRI DEL PRODOTTO
DESCRIZIONE
DESCRIZIONE DEI PRODOTTI
The DEVELON DX60D Mini Hydraulic Excavator is designed for compact yet powerful performance on tight and demanding job sites. Its DW02 turbocharged engine delivers reliable power even in cold or high-altitude conditions. The LS load-sensing hydraulic system efficiently distributes flow, minimizing energy loss and reducing fuel consumption. Reinforced upper structure and optimized chassis provide excellent durability for heavy-duty and breaking work. Operator comfort is enhanced with a suspended seat, adjustable settings, and a large display panel, ensuring precise control and a smoother working experience.
STRUTTURA DEI PRODOTTI
PARAMETRO TECNICO
| Category | Parameter | Value/Specification |
|---|---|---|
| Basic Dimensions | Boom Length | 3,000mm |
| Arm Length | 1,550mm | |
| Capacità della benna | 0.25m³ | |
| Track Shoe Width | 400mm | |
| Performance | Peso operativo | 5,950kg |
| Velocità di oscillazione | 11rpm | |
| Velocità di marcia (alta/bassa) | 4.2/2.5km/hr | |
| Fuel Tank Capacity | Fuel Tank | 130L |
| Engine Oil Capacity | 9L | |
| Travel Gearbox Oil Capacity | 2×2L | |
| Hydraulic Tank Capacity | 80L | |
| Cylinder Specs | Boom Cylinder (Bore×Rod×Stroke) | 110×60×662mm |
| Arm Cylinder (Bore×Rod×Stroke) | 90×55×735mm | |
| Bucket Cylinder (Bore×Rod×Stroke) | 85×50×613mm | |
| Dozer Blade Cylinder (Bore×Rod×Stroke) | 100×55×152mm | |
| Max Digging Force (ISO) | Bucket Digging Force | 4ton |
| Arm Digging Force | 2.8ton |
