DEVELON DX1000HD Hydraulic Excavator - Excavators, Loaders & Wide-Body Dump Trucks

PARAMETRI DEL PRODOTTO

Model: DX1000HD
Operating Weight: 97,900 kg
Engine: 469 kW high-pressure common rail engine
Rated Power: 469 kW
Bucket Capacity: 7.2 m³ (optional 5.4 m³ heavy-duty bucket)
Max. Digging Height: 13.5 m

RICHIEDI UN PREVENTIVO

Descrizione

FAQ

Richiesta di preventivo

DESCRIZIONE

DESCRIZIONE DEI PRODOTTI

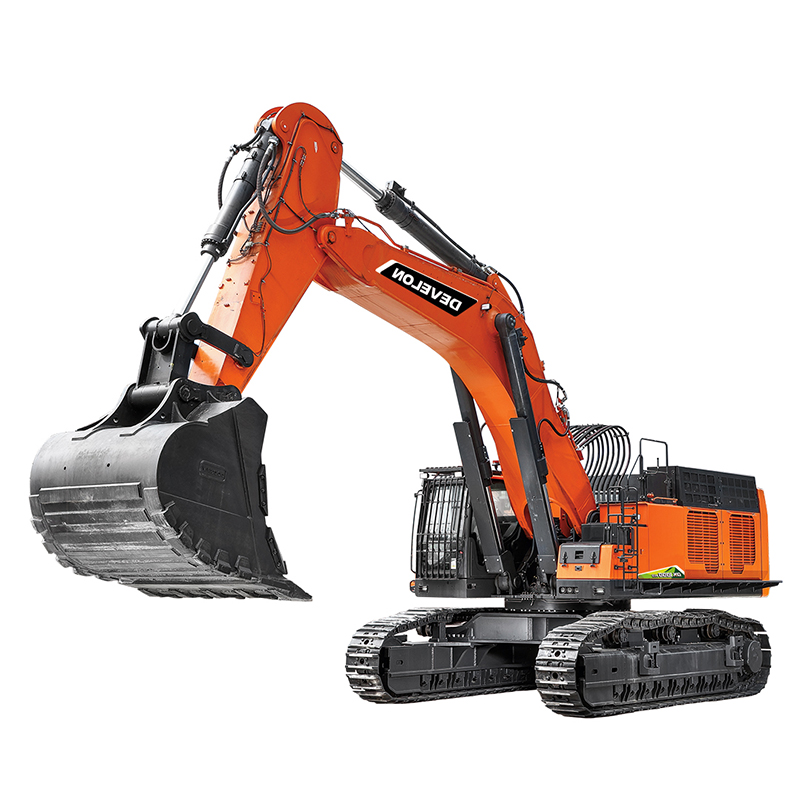

The DEVELON DX1000HD is a 100-ton hydraulic excavator built for large-scale mining operations. Equipped with a 469 kW high-power engine and a 7.2m³ extra-large bucket, it features the advanced D-ECOPOWER intelligent hydraulic system for boom and rotation priority control, delivering high efficiency and fuel savings. Reinforced X-frame chassis, ultrasonic-enhanced cylinders, and dual-layer air filtration ensure durability in extreme conditions. Its extended operational range, VR-assisted control system, and automatic lubrication system minimize downtime while maximizing productivity in billion-ton open-pit mines, mega infrastructure projects, and ultra-deep pit operations.

PRODUCTS STRUCTURE

PARAMETRO TECNICO

Articolo	Specifiche
Engine Model	Perkins 2806J
Emission Standard	National IV
Potenza nominale	469 kW / 2,000 rpm
After-treatment	DPF + SCR
Boom Cylinder	2-215 × 150 × 1,910 mm
Arm Cylinder	1-240 × 170 × 2,020 mm
Bucket Cylinder	1-225 × 160 × 1,530 mm
Main Pump Type	Series, Axial Piston
Main Pump Max Flow	3 × 523 L/min
Pilot Pump Type	Gear Pump
Pilot Pump Max Flow	60 L/min
Travel Speed (High/Low)	4.5 / 2.8 km/h
Max Traction Force	78.7 / 47.9 ton
Maximum Gradeability	35°
