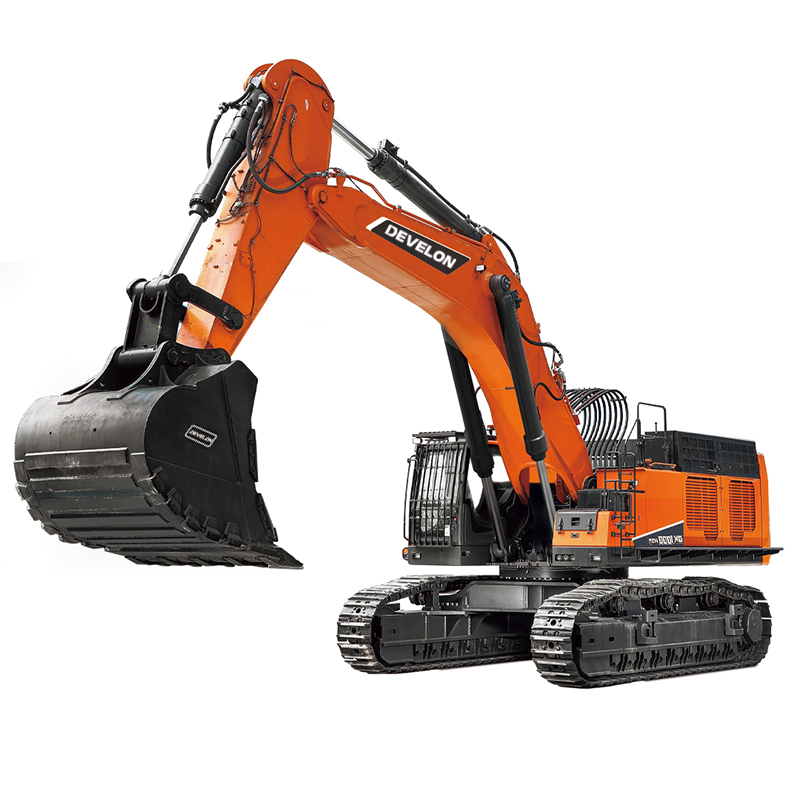

Escavadora hidráulica DEVELON DX1000HD

PARÂMETROS DO PRODUTO

  • Model: DX1000HD
  • Operating Weight: 97,900 kg
  • Engine: 469 kW high-pressure common rail engine
  • Rated Power: 469 kW
  • Bucket Capacity: 7.2 m³ (optional 5.4 m³ heavy-duty bucket)
  • Max. Digging Height: 13.5 m
Descrição
FAQ
Pedir um orçamento

DESCRIÇÃO

DESCRIÇÃO DOS PRODUTOS

The DEVELON DX1000HD is a 100-ton hydraulic excavator built for large-scale mining operations. Equipped with a 469 kW high-power engine and a 7.2m³ extra-large bucket, it features the advanced D-ECOPOWER intelligent hydraulic system for boom and rotation priority control, delivering high efficiency and fuel savings. Reinforced X-frame chassis, ultrasonic-enhanced cylinders, and dual-layer air filtration ensure durability in extreme conditions. Its extended operational range, VR-assisted control system, and automatic lubrication system minimize downtime while maximizing productivity in billion-ton open-pit mines, mega infrastructure projects, and ultra-deep pit operations.

ESTRUTURA DOS PRODUTOS

PARÂMETRO TÉCNICO

ItemEspecificação
Modelo do motorPerkins 2806J
Emission StandardNational IV
Potência nominal469 kW / 2,000 rpm
After-treatmentDPF + SCR
Cilindro da lança2-215 × 150 × 1,910 mm
Cilindro do braço1-240 × 170 × 2,020 mm
Cilindro de balde1-225 × 160 × 1,530 mm
Tipo de bomba principalSeries, Axial Piston
Caudal máximo da bomba principal3 × 523 L/min
Pilot Pump TypeGear Pump
Pilot Pump Max Flow60 L/min
Travel Speed (High/Low)4.5 / 2.8 km/h
Max Traction Force78.7 / 47.9 ton
Maximum Gradeability35°
