Machine Stable is an authorized distributor of the DEVELON brand under HD Hyundai.
ОПИСАНИЕ ПРОДУКЦИИ

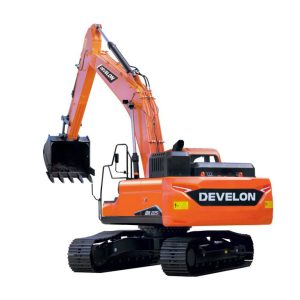

The DEVELON DX225LC hydraulic excavator delivers outstanding power, efficiency, and reliability for high-intensity construction tasks. It is equipped with a Divanlen DL06 six-cylinder engine producing 128.4 kW, featuring a DPF+SCR dual aftertreatment system that meets National IV emission standards without the need for urea. The machine operates stably at altitudes up to 5,000 meters and offers excellent cold start performance. Fuel efficiency is enhanced by 10% through the SPC3 intelligent control system, optimizing power output.
СТРУКТУРА ПРОДУКЦИИ
ТЕХНИЧЕСКИЙ ПАРАМЕТР
| Артикул | Технические характеристики |
|---|---|
| Модель двигателя | DEVELON DL06 |
| Тип двигателя | Турбированный |
| Number of Cylinders | 6 |
| Cylinder Bore | 100 мм |
| Piston Stroke | 125 мм |
| Rated Power (DX225) | 127,9 кВт / 1 800 об/мин |
| Rated Power (DX225LC) | 129.4 kW / 1,900 rpm |
| Intake | Electronic Control Turbo |
| Максимальный расход | 2 × 210,6 л/мин |
| Working Hydraulic Circuit Pressure | 350/370 kg/cm² |
| Travel Hydraulic Circuit Pressure | 350 kg/cm² |
| Swing Hydraulic Circuit Pressure | 280 kg/cm² |
| Drive Type | Гидравлический привод |
| Reduction Mechanism | Планетарная зубчатая передача |
| Качающийся тормоз | Wet Multi-Plate Brake |
| Скорость поворота | 10,4 об/мин |
| Boom Cylinder Size | 120 × 85 × 1,263 mm |
| Arm Cylinder Size | 135 × 95 × 1,443 mm |
| Bucket Cylinder Size | 120 × 80 × 1,060 mm |
