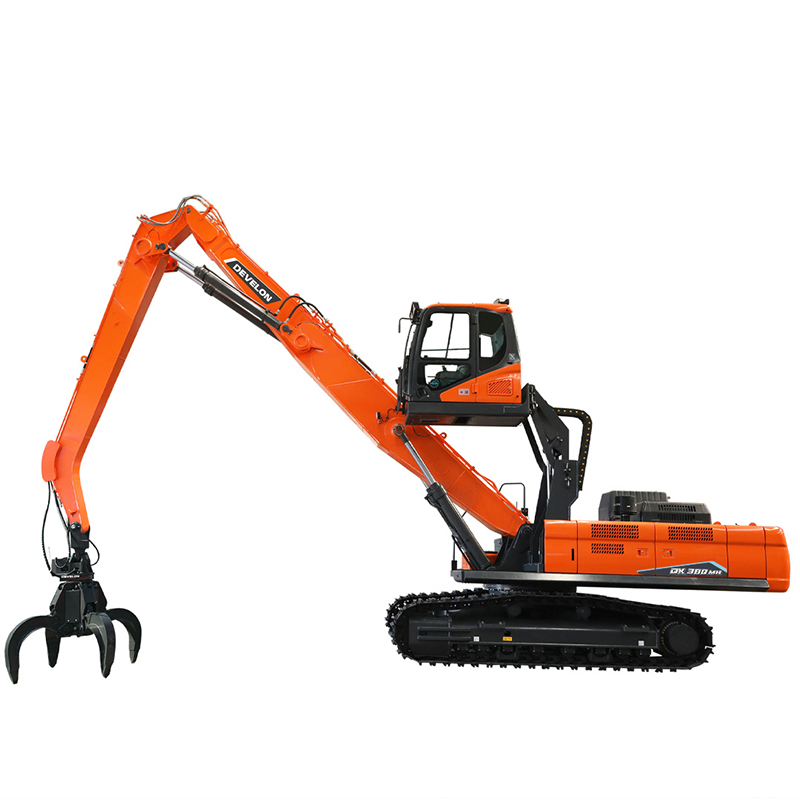

DEVELON DX210/205/305/500/380MH Multifunctional Material Handling Machines
PRODUCT PARAMETERS
DESCRIPTION
PRODUCTS DESCRIPTION
DEVELON DX210/205/305/500/380MH Multifunctional Material Handling Machines are built for intelligent, versatile, and high-efficiency material handling. They comply with National IV emission standards and support goals for carbon neutrality and peak emission reduction. The machines offer specialized attachments such as clamshell buckets, lotus grapples, and electromagnets to adapt to different working conditions.
Multiple boom options, including goose-neck, extended, and three-section arms, further improve operational efficiency. These booms work together with matched counterweights to maintain stability during heavy-duty tasks. Compared with earlier models, the new engines deliver higher power and torque. The next-generation hydraulic systems—FEH, VBO, SPC3, and EPOS—provide stronger performance while reducing fuel consumption.
Safety and comfort are also upgraded. Optional ROPS-compliant cabin protective screens, large full-color touch displays, enhanced floating seats, and 12V USB charging help create a safer and more user-friendly operating environment.
PRODUCTS STRUCTURE
TECHNICAL PARAMETER
| Parameter | DX205 MH | DX380 MH | DX305 MH | DX500 MH |
|---|---|---|---|---|
| Engine Model | Scania DC13 | Develon DL08 | Perkins 1204E | Scania DC09 |
| Suction | Naturally Aspirated | Naturally Aspirated | Turbocharged | Turbocharged |
| Cylinder Count | 6 | 4 | 5 | 6 |
| Bore | 105 mm | 108 mm | 130 mm | 130 mm |
| Rated Power | 204 kW / 1,800 rpm | 294 kW / 1,800 rpm | 110 kW / 2,200 rpm | 240 kW / 1,000 rpm |
| Swing System Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive |
| Swing Reduction | Planetary Gear | Planetary Gear | Planetary Gear | Planetary Gear |
| Swing Brake | Wet Multi-Plate | Wet Multi-Plate | Wet Multi-Plate | Wet Multi-Plate |
| Swing Speed | 10.9 rpm | 9.1 rpm | 9.0 rpm | 11.2 rpm |
| Drive & Brake System | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive |
| Steering Control | Pedal + Joystick Integrated | Pedal + Joystick Integrated | Pedal + Joystick Integrated | Pedal + Joystick Integrated |
| Travel Motor | Axial Piston Hydraulic Motor | Axial Piston Hydraulic Motor | Axial Piston Hydraulic Motor | Axial Piston Hydraulic Motor |
| Travel Speed (High / Low) | 5.9 / 3.6 km/h | 6.1 / 3.4 km/h | 5.2 / 3.0 km/h | 5.5 / 3.1 km/h |
| Service Brake | Hydraulic Brake | Hydraulic Brake | Hydraulic Brake | Hydraulic Brake |
