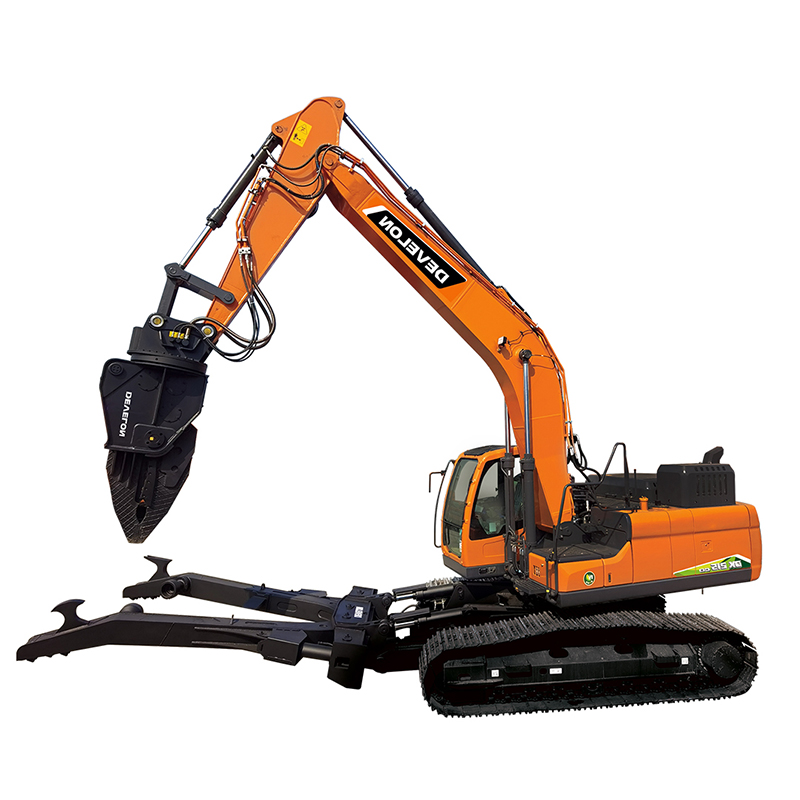

DEVELON DX215CD/DX305CD Automotive Dismantling Machines
PRODUCT PARAMETERS
DESCRIPTION
PRODUCTS DESCRIPTION
DEVELON’s DX215CD and DX305CD Automotive Dismantling Machines are designed for intelligent and high-efficiency vehicle dismantling. They meet National IV emission standards and support carbon-neutral, low-emission operation. The upgraded engines deliver higher power and torque, allowing the machines to handle heavy dismantling loads with ease.
Electronically controlled hydraulic pumps provide fast and precise response. Advanced hydraulic technologies—including FEH, VBO, SPC3, and EPOS—work together to optimize performance and lower fuel consumption. The 360° rotating hydraulic shears combine cutting, grabbing, and sorting functions to streamline dismantling tasks. Single-action and multifunction arm clamps further improve efficiency across various work scenarios.

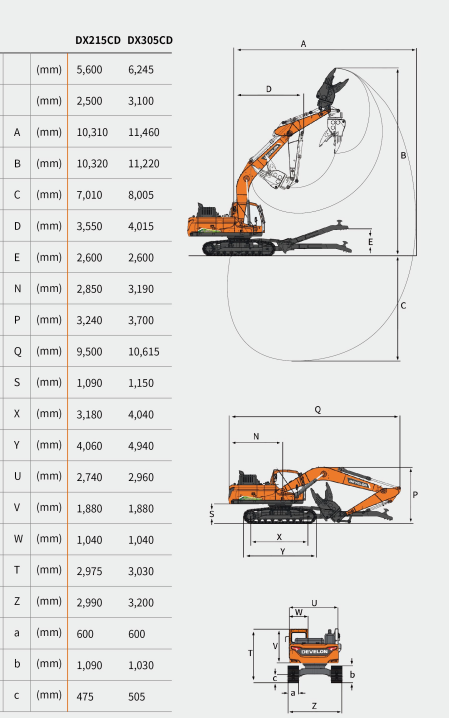

PRODUCTS STRUCTURE
TECHNICAL PARAMETER
| Parameter | DX215CD | Parameter | DX305CD |
|---|---|---|---|
| Engine Model | DL06 | Engine Model | DL08 |
| Engine Type | Inline | Engine Type | Inline |
| Suction | Turbocharged | Suction | Turbocharged |
| Travel Motor | Axial Piston ×2 | Travel Motor | Axial Piston ×2 |
| Swing Motor | Axial Piston | Swing Motor | Axial Piston |
| Main Pump Type | Variable Axial Piston Pump | Main Pump Type | Variable Axial Piston Pump |
| Bore | 100 mm | Bore | 125 mm |
| Stroke | 139 mm | Stroke | — |
| Rated Power | 127.9 kW / 1,800 rpm | Rated Power | 204 kW / 1,800 rpm |
| Max Flow | 2 × 288 L/min | Max Flow | 2 × 210.6 L/min |
| Swing System | Hydraulic Drive | Swing System | Hydraulic Drive |
| Working Circuit Pressure | 350 kg/cm² (34.3 MPa) | Working Circuit Pressure | 350 kg/cm² (34.3 MPa) |
| Swing Reduction | Planetary Gear | Swing Reduction | Planetary Gear |
| Travel Circuit Pressure | 350 kg/cm² (34.3 MPa) | Travel Circuit Pressure | 350 kg/cm² (34.3 MPa) |
| Swing Brake | Wet Multi-Plate | Swing Brake | Wet Multi-Plate |
| Swing Circuit Pressure | 290 kg/cm² (28.4 MPa) | Swing Circuit Pressure | 300 kg/cm² (29.3 MPa) |
| Swing Speed | 10.4 rpm | Swing Speed | 10.9 rpm |
| Boost Circuit Pressure | 370 kg/cm² (36.3 MPa) | Boost Circuit Pressure | 370 kg/cm² (36.3 MPa) |
