DEVELON DOOSAN DX220LCA-2M Hydraulic Excavator
PRODUCT PARAMETERS
DESCRIPTION
PRODUCTS DESCRIPTION
The DX220LCA-2M Hydraulic Excavator is equipped with a reinforced heavy-duty front structure designed for high-intensity breaking and continuous load operations. The 5.7 m boom and 2.9 m arm (optional 2.4 m) provide flexible configuration for varying jobsite demands. Additional reinforcement ribs at the arm root enhance structural durability under impact conditions. A 1.24 m³ dual-radius bucket supports efficient excavation and loading performance. The extended LC undercarriage ensures strong ground contact and operational balance, while the 2.99 m chassis width delivers stable support even during 90-degree swing operations or uneven terrain work.
The DX series cab adopts ergonomic design principles to maximize operator comfort and productivity. An integrated 8-inch touchscreen monitor enables partial adjustment of machine working parameters and performance settings. The multi-directional adjustable suspension seat significantly reduces operator fatigue during extended working hours. Standard LED auxiliary lighting enhances visibility and safety for night operations. Powered by the Develon DB58 high-performance 6-cylinder engine, the machine offers proven reliability and consistent output. Premium hydraulic components, including the Flutek main pump, Mottrol main control valve, and hydraulic motors, are professionally calibrated to achieve smooth control response and coordinated hydraulic performance across demanding applications.

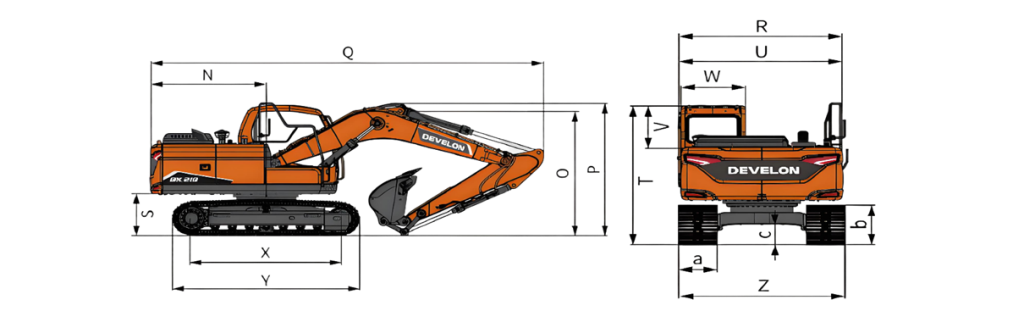

PRODUCTS STRUCTURE
TECHNICAL PARAMETER
| DESCRIPTION | ITEM | UNIT | VALUE |
|---|---|---|---|
| Overall Length | Overall Length | mm | 9505 |
| Overall Height (to top of boom) | Overall Height (to top of boom) | mm | 2860 |
| Overall Height (to top of cab) | Overall Height (to top of cab) | mm | 2955 |
| Upperstructure Height | Upperstructure Height | mm | 1644 |
| Overall Width (upperstructure) | Overall Width (upperstructure) | mm | 2710 |
| Overall Width (transport width) | Overall Width (transport) | mm | 3000 |
| Rear Swing Radius | Rear Swing Radius | mm | 2792 |
| Ground Clearance (counterweight bottom) | Ground Clearance (under counterweight) | mm | 1066 |
