DEVELON/DOOSAN Double-Cylinder Hydraulic Shear – Efficient Scrap Steel and Concrete Cutting

PRODUCT PARAMETERS

  • Model: Double-Cylinder Hydraulic Shear
  • Operating Weight: 20-38 ton
Description
FAQ
Request A Quote

DESCRIPTION

PRODUCTS DESCRIPTION

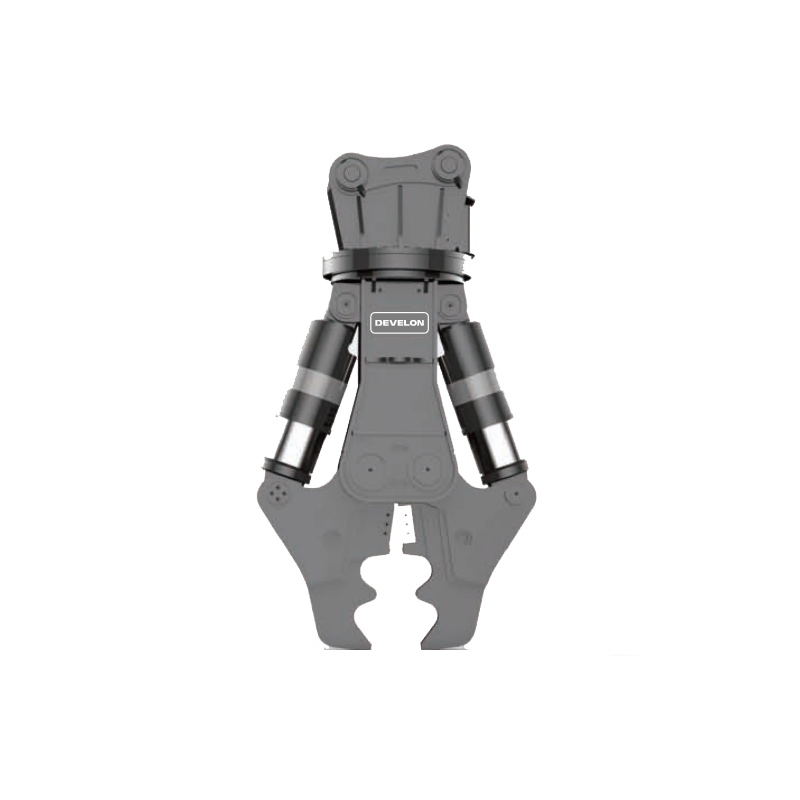

This double-cylinder hydraulic shear is designed for 20–38 ton DEVELON and DOOSAN excavators. Its main structure uses Hardox steel plates, providing high strength while keeping weight low.

Additionally, an imported rotary motor with a bidirectional relief valve maintains stable hydraulic pressure and protects the system during operation. The heat-treated symmetrical blades can be reversed, extending service life and improving cutting efficiency.

Furthermore, this durable attachment is ideal for building demolition, waste material cutting and recycling, and disaster rescue tasks. It delivers reliable and versatile performance for DEVELON and DOOSAN excavators.

TECHNICAL PARAMETER

ModelUnitScrap ShearConcrete Shear
SP20JSP26JCP15JCP20JCP26JCP30JCP38J
WeightKg2,5002,5001,5002,2002,2003,2003,200
Max. Openingmm6536536339509501,1001,100
Lengthmm2,2152,2861,9522,3742,4152,5702,570
Widthmm1,4081,4081,1751,3601,3601,6001,630
Effective Blade Lengthmm486486130180180240240
Rotation–360° Rotation360° Rotation360° Rotation360° Rotation360° Rotation360° Rotation360° Rotation
Set Pressurebar320320300320320320320
Root Shear ForceTon250250120168168288288
Middle Shear ForceTon144144667878125125
Tip Shear ForceTon95953656569090
Suitable CarrierTon20T26T15T20T26T30T38T
